A few months ago I wrote here about a generic approach to safely take incoming JSON and save values to Core Data object. The goals of that code were twofold:

1. Provide a safe, generic alternative to Cocoa’s -setValuesForKeysWithDictionary: for use with NSManagedObject and its subclasses
2. Handle cases where JSON data didn’t match up with what the managed objects expected. Getting a string where you expect a numeric value, or vice versa, for example, or getting a string representation of a date when you want a real NSDate object.

The first item was the most important. It’s tempting to use -setValuesForKeysWithDictionary: to transfer JSON to a model object in one step. The method runs through the dictionary and calls -setValue:forKey: on the target object for every entry. It has a fatal flaw though, in that it doesn’t check to see if the target object actually has a key before trying to set it. Using this method when you don’t have absolute control over the dictionary contents is an invitation to unknown key exceptions and nasty app crashes.

Fixing this for managed objects was relatively easy because Core Data provides convenient Objective-C introspection methods. The general approach was:

• Get a list of the target object’s attributes
• For each attribute, see if the incoming dictionary has an entry. If so,
• Compare the incoming type to the expected type, and convert if necessary.
• Call -setValue:forKey: with that key and its value.

And then just last week I had the thought, wouldn’t it be nice if this worked for any object, not just for managed objects?

Objective-C introspection

Since Objective-C is dynamic, pretty much everything you’d want to know about a class is available at run time. I’m not just talking about methods like -respondsToSelector: and -isKindOfClass:, though those are extremely useful. You can go much, much deeper than that, inspecting (and even changing) every aspect of a class’s implementation. Much of this happens via C function calls rather than Objective-C method calls. The Objective-C runtime is not actually written in Objective-C, and it’s the runtime that has the information.

To update the code for use with objects that don’t inherit from NSManagedObject the new code looks through the properties declared on a class and uses those to run through the incoming JSON. The general approach is the same but the implementation uses NSObject properties instead of NSEntityDescription attributes.

It’s also possible to look through the instance variables instead of the properties. Often this would amount to the same thing. Where they differ is when the backing ivar has a different name, i.e. when you’re using something like:

@synthesize foo = __myReallyBizarrePrivateName____;

In that case iterating over properties would find foo while iterating over instance variables would find __myReallyBizarrePrivateName____. Either is valid but I’m going with the properties because (at least for me) they’re more likely to match up with the JSON keys.

First pass: iterating over properties

A simple version that meets requirement #1 looks like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

- (void)setValuesForKeysWithJSONDictionary:(NSDictionary *)keyedValues dateFormatter:(NSDateFormatter *)dateFormatter
{
    unsigned int propertyCount;
    objc_property_t *properties = class_copyPropertyList([self class], &propertyCount);

    for (int i=0; i<propertyCount; i++) {
        objc_property_t property = properties[i];
        const char *propertyName = property_getName(property);
        NSString *keyName = [NSString stringWithUTF8String:propertyName];

        id value = [keyedValues objectForKey:keyName];
        if (value != nil) {
            [self setValue:value forKey:keyName];
        }
    }
    free(properties);
}

This starts with a call to class_copyPropertyList(), which gets a C-style array of property declarations for the requested class. The propertyCount argument indicates how many properties are in the array. The array contains zero or more objc_property_t entries, which is an opaque structure.

The code iterates through this array. For each one it uses property_getName to get the property name as a C-style string. Then it converts this to an NSString and uses that to look up entries in the incoming dictionary. And, voila, we’re using the class’s own properties to look up values in the dictionary instead of the other way around.

A final detail– unusual in Objective-C code– is the call to free(). Since class_copyPropertyList() has copy in its name, the calling code is responsible for disposing of the returned data. And since it’s a C call, this needs to be done C style. This call would need to be there even if the project were using ARC.

Back to Core Data, briefly

The great thing about this solution is that it’s not the non-managed-object alternative to the previous version, it’s a direct replacement. This approach works just as well on managed objects as on other objects– provided, that is, that you create custom subclasses of NSManagedObject for your entities that declare properties for managed object attributes. So long as the properties exist, the code works. If you’re using Xcode or mogenerator to generate your managed object subclasses, you’re covered. If you aren’t creating custom subclasses, first of all, why not? But in that case this approach won’t work since NSManagedObject doesn’t have the necessary property declarations.

Does it have to be like this?

Some of you may have noticed that it’s possible to do the same thing without any mucking about with the runtime by doing something like this:

1
2
3
4
5
6
7
8

    for (NSString *key in keyedValues) {
        @try {
            [self setValue:[keyedValues objectForKey:key] forKey:key];
        }
        @catch (NSException *exception) {
            // Do nothing
        }
    }

In this case the dictionary keys still drive the action, but exception handling means the code doesn’t crash on unknown keys. So why bother then? Because of requirement #2 above. Coercing JSON into appropriate data types is going to require introspection. With this simplified approach you don’t crash, but you also don’t get type conversions. If not crashing is all you’re interested in, this works just as well and is probably faster. It’s certainly simpler anyway. It’s not going to do what I need though.

JSON Fixes

To meet requirement #2 the code needs to go deeper. As with the Core Data implementation, it needs to look up the expected value for the property and compare that to the type of the incoming data. To do this I’ll expand the if block beginning on line 12 above to look like this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

if (value != nil) {
    char *typeEncoding = NULL;
    typeEncoding = property_copyAttributeValue(property, "T");

    if (typeEncoding == NULL) {
        continue;
    }
    switch (typeEncoding[0]) {
        case '@':
        {
            // Object
            Class class = nil;
            if (strlen(typeEncoding) >= 3) {
                char *className = strndup(typeEncoding+2, strlen(typeEncoding)-3);
                class = NSClassFromString([NSString stringWithUTF8String:className]);
            }
            // Check for type mismatch, attempt to compensate
            if ([class isSubclassOfClass:[NSString class]] && [value isKindOfClass:[NSNumber class]]) {
                value = [value stringValue];
            } else if ([class isSubclassOfClass:[NSNumber class]] && [value isKindOfClass:[NSString class]]) {
                // If the ivar is an NSNumber we really can't tell if it's intended as an integer, float, etc.
                NSNumberFormatter *numberFormatter = [[NSNumberFormatter alloc] init];
                [numberFormatter setNumberStyle:NSNumberFormatterDecimalStyle];
                value = [numberFormatter numberFromString:value];
                [numberFormatter release];
            } else if ([class isSubclassOfClass:[NSDate class]] && [value isKindOfClass:[NSString class]] && (dateFormatter != nil)) {
                value = [dateFormatter dateFromString:value];
            }

            break;
        }

        default:
        {
            break;
        }
    }
    [self setValue:value forKey:keyName];
    free(typeEncoding);
}

The runtime provides information about properties via the call to property_copyAttributeValue() on line 3. The first argument is the property of interest. The second one can have a bunch of different values depending on what you want to look up. A “T” requests a C-style string that describes the property type. For full details on what you can do with the second argument, see the (somewhat out of date as of this writing) “Declared Properties” section of Apple’s Objective-C Runtime Programming Guide.

If the property type is a pointer to a class, the return value will be something like T@"NSNumber", T@"NSString", T@"MyClass", etc. The next thing the code does then is to check for a leading @ and, if found, set about getting the Class that the type string names. This happens in lines 12-16. The code strips off the @ and the quotes, converts to NSString, and uses NSClassFromString to get the Class.

The rest of this code is remarkably similar to the Core Data version, looking for type mismatches and converting the incoming value where needed. The chief difference is that it uses -isSubclassOfClass: to check on the expected type of the property instead of looking at the Core Data-specific NSAttributeType.

Except for one important difference. For numeric properties, the Core Data attribute type would indicate whether a floating point or integer value was expected. With NSNumber we have no way of knowing. So the code uses NSNumberFormatter to parse incoming strings and leaves it at that. If this kind of mismatch occurs then there are bigger problems anyway. You could change the code to round a float to an int, but is that actually going to be a valid result? Maybe, maybe not.

The type comparisons in this code could go on forever but in this case the code is specifically looking for problems that sometimes crop up with JSON.

Since property_copyAttributeValue() has copy in its name, this block adds another call to free() to clean up after itself.

Handling primitives

But what if the expected value is not an object at all? What if it’s a primitive int? Fortunately property_copyAttributeValue() covers that case as well. In this case the type encoding string is shorter, with values like Ti for int, Tf for float, TQ for unsigned long long, etc (again, see Apple’s docs for a full list).

With this information, the switch statement above can be expanded with a few more cases.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

        case 'i': // int
        case 's': // short
        case 'l': // long
        case 'q': // long long
        case 'I': // unsigned int
        case 'S': // unsigned short
        case 'L': // unsigned long
        case 'Q': // unsigned long long
        case 'f': // float
        case 'd': // double
        case 'B': // BOOL
        {
            if ([value isKindOfClass:[NSString class]]) {
                NSNumberFormatter *numberFormatter = [[NSNumberFormatter alloc] init];
                [numberFormatter setNumberStyle:NSNumberFormatterDecimalStyle];
                value = [numberFormatter numberFromString:value];
                [numberFormatter release];
            }
            break;
        }

        case 'c': // char
        case 'C': // unsigned char
        {
            if ([value isKindOfClass:[NSString class]]) {
                char firstCharacter = [value characterAtIndex:0];
                value = [NSNumber numberWithChar:firstCharacter];
            }
            break;
        }

The first half of this, up to line 20, handles all the numeric types. As with the previous code block there’s no attempt to work out floating point/integer conflicts since it’s impossible to know how to handle this in the general case. It would be possible to break this up into more specific checks, say by using -[NSString intValue] when an integer result is expected and hope for valid data. But the code above handles the case where you actually have an integer value, and if you don’t have one then again, you have bigger problems.

The rest of this block handles a primitive char property by taking the first character in the incoming string. Longer strings can’t be stored in a char anyway, so this is the best approach.

In both cases the conversion results in an NSNumber instead of a primitive type. That’s OK though– -setValue:forKey: has our back here and will unbox the object for us.

Conclusion

Using this approach makes it a lot easier to deal with web services. You can’t always rely on the results matching what you expect (or what’s documented). Inspecting classes at run time takes a more defensive approach to dealing with data you can’t control.

A category on NSObject that implements this code can be found at github.

Recently on StackOverflow I have seen several questions regarding the desire for a parent Entity to be updated whenever an attribute within the child has changed.

There are several different ways to solve this problem. The easiest is to have the child ping the parent whenever it changes and then the parent can update any values it needs to as a result of that ping. (more…)

Note: This is a re-print from the Mac Developer Network.

One of the nice things about developing software for OS X is all the “freebies” we get out of Cocoa. For example, when we are building a UI with text input we get undo support for free! How cool is that?

Likewise, when we are working with Core Data, it also has undo support built right in. Every NSManagedObjectContext has a NSUndoManager that we can use. However there are some situations where the default undo support is insufficient.

In this article we are going to walk through one such situation. (more…)

Note: This is a re-print from the Mac Developer Network.

I tend to frequent the StackOverflow website and watch for questions about Core Data. Generally if it is a question I can answer I will and if it is a question I can’t answer then I really dig in for a fun session of exploration and attempt to find the answer. (more…)

Core Data has many features, one of which is the Transient attribute. This type of attribute on a Core Data entity is part of a data model, but is not persisted in your Core Data persistent store. If you open up the raw SQLite store file and peek at the schema, you will not find any transient attributes. These transient attributes are still handy despite no data being persisted to the data store. One useful scenario is when a value is calculated based on other attributes. This calculation can be performed in an entity’s awakeFromFetch method, and stored at run time in this transient attribute.

One scenario I’ve been asked about on more than one occasion recently is that of temporary, or transient entities. It seems that more and more developers have a need for temporary, or transient instances of entities in your Mac or iOS apps. Having temporary object instances can be useful and necessary in certain situations. Unfortunately, Transient Entities do not technically exist within the Core Data framework, however there are simple solutions to add temporary, un-persisted, data within the context of Core Data. Let’s go over some methods to effectively use the concept of Transient, or more appropriately Temporary Entities in Core Data without direct built-in support.

(more…)

Hi, I’m new here. You may know me as @atomicbird on Twitter. Just a few days ago my book Core Data for iOS: Developing Data-Driven Applications for the iPad, iPhone, and iPod touch (co-written with the excellent Tim Isted) was published, and Matt invited me to contribute some Core Data tips to CIMGF. I’m going to start off discussing taking JSON data from a web service and converting it to Core Data storage. Along the way I’ll cover how to inspect managed objects to find out what attributes they have and what the attribute types are.

Publishing lead times being what they are, this post covers information not included in the book. (more…)

I know I mentioned we would talk about customizing the fetch requests, however, I have been working on some code related to the Active Record Fetching project, which I am renaming to MagicalRecord, that is also just as useful as fetching–threading.

Whenever most cocoa developers mention threading and Core Data in the same sentence, the reaction I see most often is that of mysticism and disbelief. For one, multithreaded programming in general is hard–hard to design correctly, hard to write correctly, and debugging threads is just asking for trouble. Introducing Core Data into that mix can seem like the straw that broke the camel’s back. However, by following a few simple rules and guidelines, and codifying them into a super simple pattern, one that may be familiar to you, we can achieve safer Core Data threading without the common headaches.

(more…)

First up, I want to thank Matt Long and Marcus Zarra for allowing me to guest post on CIMGF. This post is the first in a short series of topics describing how to I’ve made using Core Data a little simpler without giving up the power features you still need. The full project from which this series is derived is available on github.

Core Data, for both iPhone and Mac, is a very powerful framework for persisting your objects out of memory, and into a more permanent storage medium. With the enormous power of Core Data, it can be easy to slip into the trap of thinking that Core Data is very complex.

(more…)

This article is reprinted from the MDN

The documentation on Core Data for the iPhone has lead to some confusion about how best to use Core Data on a Cocoa Touch device. One particular section seems to be the most confusing, specifically:

A view controller typically shouldn’t retrieve the context from a global object such as the application delegate. This tends to make the application architecture rigid. Neither should a view controller typically create a context for its own use. This may mean that operations performed using the controller’s context aren’t registered with other contexts, so different view controllers will have different perspectives on the data.

When you create a view controller, you pass it a context. You pass an existing context, or (in a situation where you want the new controller to manage a discrete set of edits) a new context that you create for it. It’s typically the responsibility of the application delegate to create a context to pass to the first view controller that’s displayed.

The idea behind this section is the issue of rigidity. Ideally, each view controller should be an island on its own. It should not rely on its parent, nor should it rely on the Application Delegate. Once a view controller is pushed onto the screen it should ideally be its own master.

Why Rigidity is bad

It is fairly common when designing a Cocoa Touch application to “hard code” everything. Take the following navigation controller design:

When this design, it is common to code each view controller and make it “aware” of its parent. In that design, it would be common to see view controller B call methods or call back (to its delegate) view controller A. While there is nothing technically wrong with this design, it is very rigid. It is nearly impossible to either move view controller B to another location in the stack or to reuse view controller B somewhere else. This is the trap that the documentation is trying to help new developers avoid.

Solution One

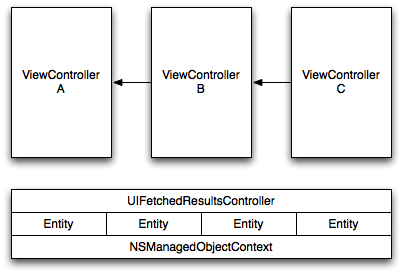

Again using a standard/normal navigation controller design, it is expected that the detail flows from left to right. The left most (or root) view controller contains the most vague information and the right most (or deepest) view controller contains the greatest detail.

In this case then the best solution is to use a UIFetchedResultsController. This controller can be considered a thin layer between the view controllers and the Core Data bits. The advantage is that the UIFetchedResultsController is designed to work with tables. The other advantage is that your least detailed view (the root most likely) can listen as the delegate of the UIFetchedResultsController for changes and update itself.

In this design, however, instead of passing around a context, you would hand off just the entity that the child view controller needs to know about. The Core Data Recipes example provided by Apple illustrates this design quite well.

How does this break rigidity? Each view controller, from the root on down, only knows what is passed into it. The root gets the UIFetchedResultsController passed into it. The child views only get the items it cares about passed into it. None of them care what their parent view controller is. There is no call back to a parent.

Solution two

What happens when we don’t have a typical navigation controller design? Perhaps a child view can pop up a modal view that displays different information. Perhaps a child view, for whatever reason needs to access information that cannot be directly passed into it every time.

In these cases there are a few different options.

View already has a NSManagedObject

Following our example above, lets say that view controller C needs to create a new object. Perhaps it is a detail view of a recipe and the user wants to add a new recipe type (perhaps she is a vegan and just discovered there is no vegan type in the list). In this case we have passed in an entity (the recipe) but not a reference to the NSManagedObjectContext. Fortunately this solution is easy to fix. The NSManagedObject retains a reference to its NSManagedObjectContext internally and we can access it. Therefore we can easily retrieve the NSManagedObjectContext from the NSManagedObject and create the new Type entity and pass it to the modal child or whatever our design calls for.

This again avoids rigidity because the view controller that represents the entity does not need to call up to a parent object or the UIApplication delegate. It is self contained and only manages view controllers that are down stream from it.

View does not have a NSManagedObject

In this situation things are slightly more complicated. In this case we want to create a @property for the NSManagedObjectContext and require that our creator set the property.

@interface MyViewController : ViewController
{
    NSManagedObjectContext *moc;
}

@property (nonatomic, retain) NSManagedObjectContext *moc;

@end

Again, the view controller is an island of its own because it does not care where that NSManagedObjectContext came from. All it knows is that it is required for the view to function. It does not care of it is a new NSManagedObjectContext specifically created for its use (perhaps for a cancelable edit tree) or if it is the same NSManagedObjectContext that has been passed around since the launch of the application. All it knows is that it has the elements it needs to perform its function.

By making the NSManagedObjectContext a settable property we can also transplant the view easily. If, at some point in the project lifecycle, we decide that it makes more sense to have the following design:

Taking from Apple’s Recipes Application, perhaps we decide that moving from the table view directly to the image of the recipe is more pleasing to the users and that when they want to see how to make it they can “flip” the image over and see the detail.

Making this change with each view controller being an island is quite simple. We just rearrange the views without having to worry too much about breaking the application.

Solution three

Up until now we have been looking at just a navigation controller design. But what about tab bars? In the situation of a tab bar we again want to avoid rigidity because it is even more common that tabs will get moved around.

The solution to this is to again use a @property for the NSManagedObjectContext and require that the creator set this property before the view is displayed on screen. If you are creating the tabs in code this is trivial because you are already calling init on the view controller and you can add one more line of code after the init to set the property.

If the user interface is being developed mostly in Interface Builder it is slightly more tricky. Personally I am not a fan of creating navigation controllers or tab bar controllers in Interface Builder. However if that is the design then I would recommend referencing the view controllers as properties and passing along the context upon initialization of the application. It may be possible to do this entirely in Interface Builder but I am not comfortable enough to recommend that as a solution.

Conclusion

The overall idea behind this article is to keep each view controller separate from anything up stream or in a different silo. This will make the design far more flexible in the long run. Any time that you feel the “need” to pass in a parent view controller to a child view controller, reconsider the design. Consider using a @protocol delegate design or NSNotification calls instead. Keep each view controller as its own private island.

Just a quick post to point out a great article written by Nick Harris of NewsGator fame. He has looked into the issues with Core Data and encryption.

Core Data and Enterprise iPhone Applications – Protecting Your Data

It has always been a difficult question and fortunately Apple has addressed it for us. Even better, Nick has shared the code so we don’t even need to try and discover the solution ourselves.

Thanks Nick!

So Marcus is the Core Data guy, but I’ve been working with it a good bit myself lately and was recently faced with having to add re-ordering for a list of entities in a UITableView. The methods I found online for accomplishing this all suggested using an NSMutableArray as the data source for the table view. That will work, but I came up with another method, though similar, that achieved what I need without having to switch from using my NSFetchedResultsController as the data source behind the UITableView. In the end, I did use an NSMutableArray, however, I end up using it just to take advantage of its indexing. Read on to see what I mean. (more…)

An interesting question came up on Stackoverflow today so I decided to expound upon it in a short blog post.

A situation that I believe we are going to be seeing more and more often is one where application developers are writing multiple “versions” of their applications to be used on the desktop, their iPhone and now the iPad.

Because of that situation, it is becoming even more important that we write as much portable code as possible. Fortunately, our model can be completely portable between the two platforms.

(more…)

Last month I was given the opportunity to write an article for The Pragmatic Programmers great magazine called “PragPub”. I am happy to say that the article I wrote for them was published in this month’s edition. The article, titled “Touching the Core”, is a walk through Apple’s great addition to the Core Data API for the iPhone.

Specifically this article walks through using the NSFetchedResultsController and some best practices in its use. The magazine is available for free on their website, The Pragmatic Bookshelf.

iTunes has a very neat way of searching your library, where it takes each word in your search and tries to find that word in multiple fields. For example, you can search for “yesterday beatles” and it will match “yesterday” in the Name field and “beatles” in the Artist field. The basic predicate binding for NSSearchField provided by Interface Builder is not complex enough to archive this kind of search. I need to build the predicate dynamically since I can’t assume what field the user is trying to search and that each additional word should filter the list further – just like iTunes. Here is how to go about adding iTunes-style searching. (more…)

A lot of hard work has gone into this book already and I see it becoming the definitive text on the subject of Core Data. The release date is slated for March 30, 2009, but it’s great to see it in beta. If you want to pick up the beta in PDF, it is available now from Pragmatic here: Core Data: Apple’s API for Persisting Data under Mac OS X.

While new Cocoa programmers will find it a great help to getting started quickly with Core Data, the book also covers some really interesting and advanced topics such as data versioning and migration, Spotlight/Quick Look integration, Sync Services, and multi-threading. You can really see Marcus’ command of the subject shine in these chapters which are already available in the beta.

Give Marcus some feedback on the book as it progresses. It’s going to be a great reference for any Cocoa Developer looking to harness the power of Core Data.

$21.00 for the beta PDF $41.35 for the beta PDF plus hard copy when it’s released in March.

Mad props to Marcus. Congratulations!
